Detalles

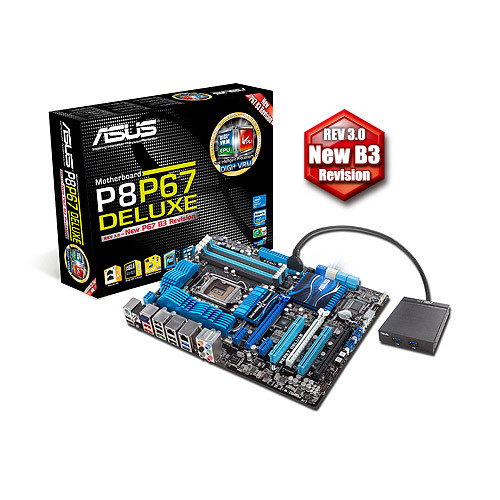

MOTHER 1155 ASUS P8P67 DELUXEDual Intelligent Processors 2 con DIGI+ VRM BT GO! (Bluetooth) – la evolución de la tecnología Bluetooth Conexiones USB 3.0 frontales Compatible con Quad USB 3.0/SATA 6Gb/s Intel® LAN, transferencias de datos más rápidas Especificaciones CPU Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors Supports Intel® 32 nm CPU Supports Intel® Turbo Boost Technology 2.0 Chipset Intel® P67(B3) Memory 4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 Hz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market. Hyper DIMM support is subject to the physical characteristics of individual CPUs. Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Expansion Slots 2 x PCIe 2.0 x16 (x16 or dual x8) 1 x PCIe 2.0 x16 (x4 mode, black) 2 x PCIe 2.0 x1 2 x PCI Storage Intel® P67(B3) chipset : 2 x SATA 6Gb/s port(s), gray 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10 Marvell® PCIe 9128 controller : *1 2 x SATA 6Gb/s port(s), navy blue JMicron® JMB362 controller : 1 x eSATA 3Gb/s port(s), red 1 x Power eSATA 3Gb/s port(s), green LAN Intel® 82579, 1 x Gigabit LAN Controller(s) Realtek® 8111E , 1 x Gigabit LAN Controller(s) Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY) Bluetooth Bluetooth V2.1+EDR Audio Realtek® ALC 889 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Blu-ray audio layer Content Protection - DTS Surround Sensation UltraPC - Coaxial and Optical S/PDIF out ports at back panel IEEE 1394 VIA® 6315N controller 2 x IEEE 1394a port(s) (1 at mid-board, 1 at back panel) USB Ports NEC® USB 3.0 controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel® P67(B3) chipset : 12 x USB 2.0 port(s) (8 at back panel, black+red, 4 at mid-board) Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x Bluetooth module(s) 1 x eSATA 3Gb/s 1 x Power eSATA 3Gb/s 1 x IEEE 1394a 2 x LAN (RJ45) port(s) 2 x USB 3.0 8 x USB 2.0 1 x Coaxial S/PDIF out 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x Clear CMOS button(s) Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 4 x SATA 3Gb/s connector(s) 1 x IEEE 1394a connector(s) 1 x CPU Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (1 x 4 -pin, 1 x 3 -pin) 2 x Power Fan connector(s) (2 x 3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Power-on button(s) 1 x Reset button(s)
