Detalles

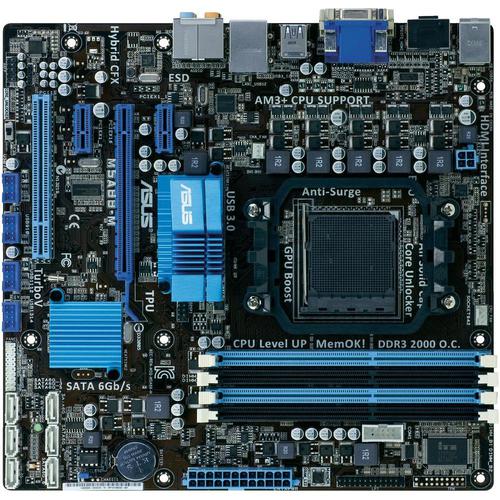

MOTHER AM3+ ASUS M5A88-MM5A88-M Tecnología Dual Intelligent Processors para la optimización de placas base AM3+ Compatible con procesadores AM3+ Dual Intelligent Processors - TPU y EPU Core Unlocker- Disfruta de todo el rendimiento de los núcleos GPU Boost – Mejora el rendimiento de la GPU USB 3.0 y SATA 6Gb/s Especificaciones CPU AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors Supports AM3+ 32 nm CPU Supports CPU up to 140 W AMD Cool 'n' Quiet™ Technology Chipset AMD 880G/SB850 Memory 4 x DIMM, Max. 16GB, DDR3 2000(O.C.)/1866(O.C.)/1600(O.C.)/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Graphic Integrated ATI Radeon™ HD 4250 GPU Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 85 Hz Maximum shared memory of 1024 MB Hybrid CrossFireX™ Support Blu-ray playback support *1 Supports DirectX 10.1, OpenGL 2.0, Shader Model 4.1 Expansion Slots 1 x PCIe 2.0 x16 2 x PCIe 2.0 x1 1 x PCI Storage AMD SB850 controller : 6 x SATA 6Gb/s port(s), white Support Raid 0, 1, 5, 10 LAN Realtek®, 1 x Gigabit LAN Controller(s) Audio Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - Optical S/PDIF out port(s) at back panel USB Ports AMD SB850 controller : 12 x USB 2.0 port(s) (4 at back panel, black, 8 at mid-board) ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue) Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) Internal I/O Ports 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x parallel port connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x Core Unlocker switch(es)
