Detalles

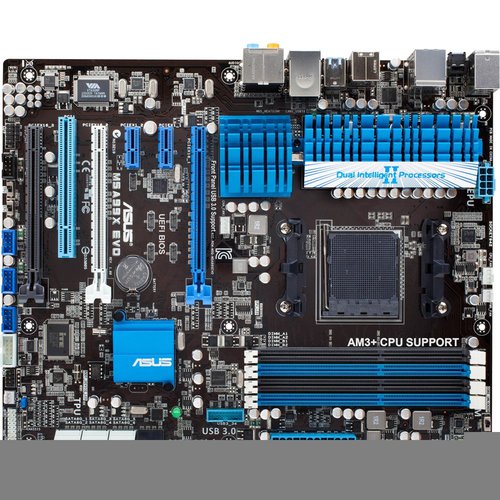

MOTHER AM3+ ASUS M5A99X EVOM5A99X EVO Novedad AMD 990X: UEFI BIOS & Digital Power Design en plataforma AM3+ Dual Intelligent Processors 2 con DIGI+ VRM: El nuevo estándar UEFI BIOS (EZ Mode) – Una interfaz gráfica más amigable para la BIOS Auto Tuning - Acelera tu sistema automáticamente Quad USB 3.0 y 6 x SATA 6Gb/s Soporte Quad-GPU SLI y Quad-GPU CrossFireX Especificaciones CPU AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors Supports AM3+ 32 nm CPU Supports CPU up to 8 cores Supports CPU up to 140 W AMD Cool 'n' Quiet™ Technology Chipset AMD 990X/SB950 Memory 4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory Dual Channel Memory Architecture System Bus Up to 5.2 GT/s HyperTransport™ 3 Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Expansion Slots 2 x PCIe 2.0 x16 (x16 or dual x8) 1 x PCIe 2.0 x16 (x4 mode, black) 2 x PCIe 2.0 x1 1 x PCI Storage AMD SB950 controller : 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 JMicron® JMB362 controller : 2 x SATA 3Gb/s port(s), black 1 x Power eSATA 3Gb/s port(s), green 1 x eSATA 3Gb/s port(s), red LAN Realtek® 8111E , 1 x Gigabit LAN Controller(s) Audio Realtek® ALC892 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - DTS Surround Sensation UltraPC - ASUS Noise Filter - Optical S/PDIF out port(s) at back panel IEEE 1394 VIA® 6308P controller 2 x IEEE 1394a port(s) (1 at mid-board, 1 at back panel) USB Ports ASMedia® USB 3.0 controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) AMD SB950 controller : 14 x USB 2.0 port(s) (8 at back panel, black+red, 6 at mid-board) Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x eSATA 3Gb/s 1 x Power eSATA 3Gb/s 1 x IEEE 1394a 1 x LAN (RJ45) port(s) 2 x USB 3.0 8 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, blue) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x IEEE 1394a connector(s) 1 x CPU Fan connector(s) (4 -pin) 3 x Chassis Fan connector(s) (1 x 4 -pin, 2 x 3 -pin) 1 x Power Fan connector(s) (1 x 3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Clear CMOS jumper(s)
